| ÖZELLİK | AÇIKLAMA |
|---|---|

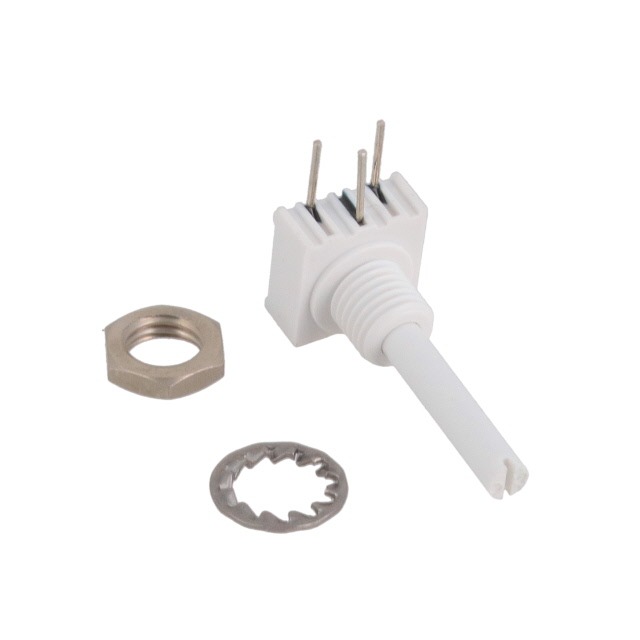

| Manufacturer | Vishay Sfernice |
| Series | P10 |
| Packaging | Box |
| Part Status | Active |
| Resistance (Ohms) | 100 |
| Tolerance | ±10% |
| Power (Watts) | 0.5W, 1/2W |
| Built in Switch | None |
| Number of Turns | 1.0 |
| Features | Sealed |
| Taper | Linear |
| Number of Gangs | 1 |
| Adjustment Type | Side Adjustment |
| Temperature Coefficient | ±150ppm/°C |
| Rotation | 290° |
| Resistive Material | Cermet |
| Termination Style | PC Pins |
| Actuator Type | Slotted |
| Actuator Length | 0.787″ (20.00mm) |
| Actuator Diameter | 0.118″ (3.00mm) |
| Bushing Thread | M6 x 0.75 |
| Mounting Type | Panel Mount |
| Size – Body | Rectangular – 0.378″ x 0.205″ Face (9.60mm x 5.20mm) |
