Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

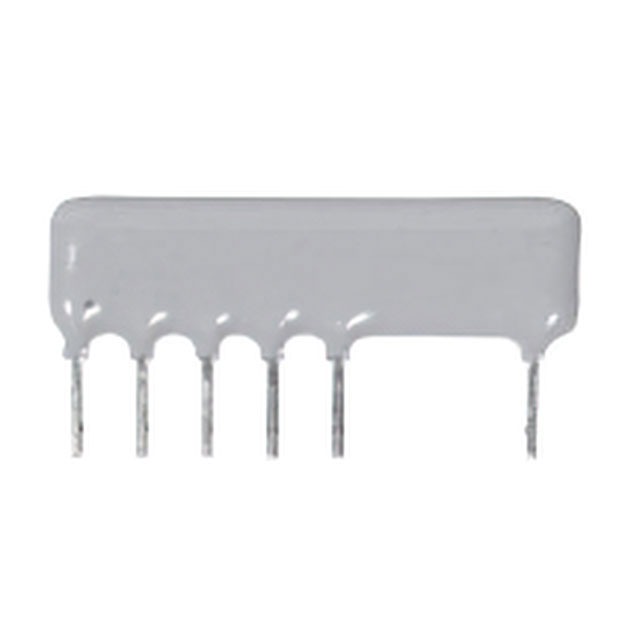

| Manufacturer | Vishay Sfernice |
| Series | CNS 471 |
| Packaging | Bulk |
| Part Status | Active |
| Circuit Type | Decade Resistor |
| Resistance (Ohms) | 1k, 9k, 90k, 900k, 9M |
| Tolerance | ±0.1% |
| Number of Resistors | 5 |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | 2.5ppm/°C |
| Number of Pins | 6 |
| Power Per Element | 100mW |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | 0°C ~ 70°C |
| Grade | – |
| Qualification | – |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP, 6 Leads |
| Supplier Device Package | – |
| Size / Dimension | 0.830″ L x 0.100″ W (21.08mm x 2.54mm) |
| Height – Seated (Max) | 0.261″ (6.62mm) |
