| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Vishay Semiconductor Opto Division |
| Series | LH1510 |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage – Input | 1.27VDC |
| Voltage – Load | 0 V ~ 200 V |
| Load Current | 200 mA |
| On-State Resistance (Max) | 15 Ohms |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 85°C |

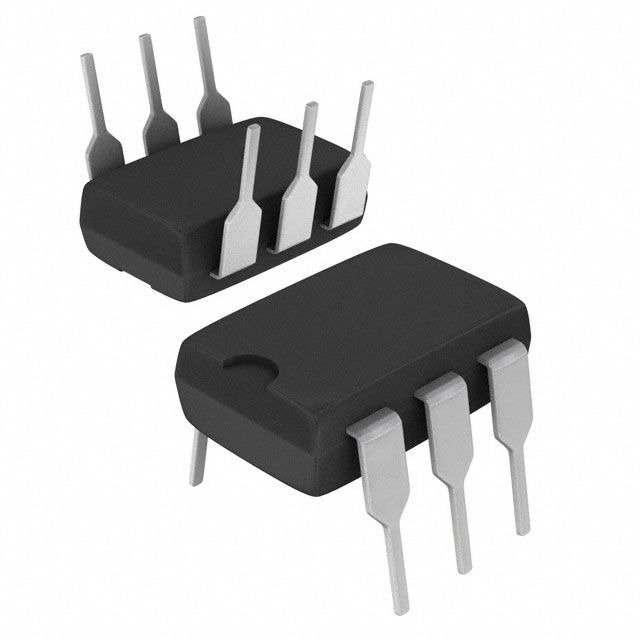

| Package / Case | 6-DIP (0.300″, 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approval Agency | cUL, DIN, FIMKO, UL |
| Grade | – |
| Qualification | – |
| Base Product Number | LH1510 |
