Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Vishay Dale Thin Film |
| Series | MPM |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Circuit Type | Voltage Divider |
| Resistance (Ohms) | 5k, 10k |
| Tolerance | ±0.1% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | ±2ppm/°C |
| Number of Pins | 3 |
| Power Per Element | 100mW |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount |

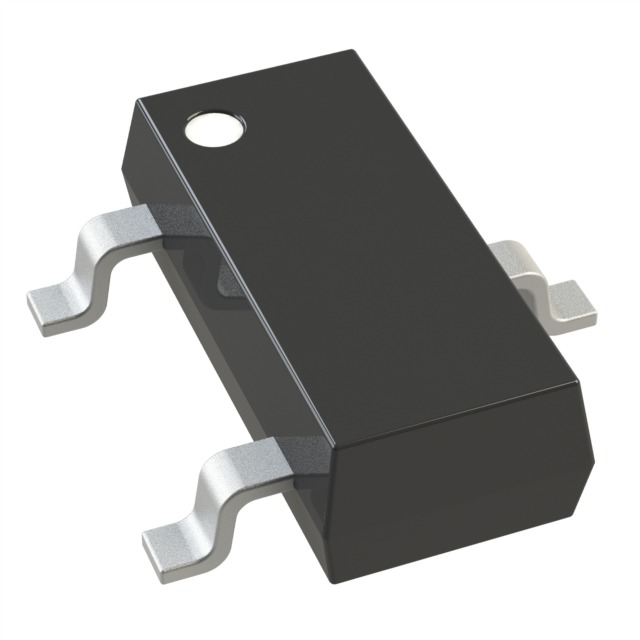

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Size / Dimension | 0.113″ L x 0.051″ W (2.86mm x 1.30mm) |
| Height – Seated (Max) | 0.044″ (1.12mm) |
