Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Vishay Dale Thin Film |
| Series | AORN |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 1k, 20k |
| Tolerance | ±0.1% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | ±5ppm/°C |
| Number of Pins | 8 |
| Power Per Element | 100mW |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount |

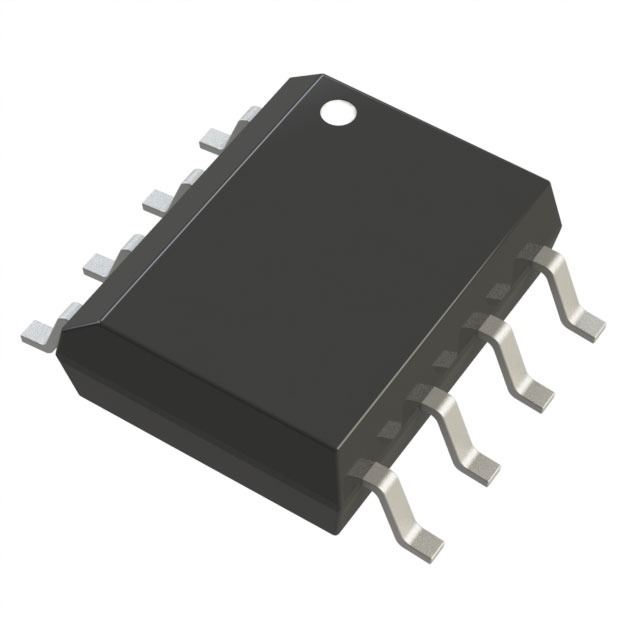

| Package / Case | 8-SOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Size / Dimension | 0.194″ L x 0.157″ W (4.93mm x 3.99mm) |
| Height – Seated (Max) | 0.068″ (1.73mm) |
