Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Vishay Dale |
| Series | RZ020 |
| Packaging | Tube |
| Part Status | Active |
| Circuit Type | Bussed |
| Resistance (Ohms) | 10k |
| Tolerance | ±2% |
| Number of Resistors | 15 |
| Resistor Matching Ratio | – |
| Resistor-Ratio-Drift | – |
| Number of Pins | 16 |
| Power Per Element | 100mW |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | Military |
| Qualification | MIL-PRF-83401/02 |
| Applications | – |
| Mounting Type | Through Hole |

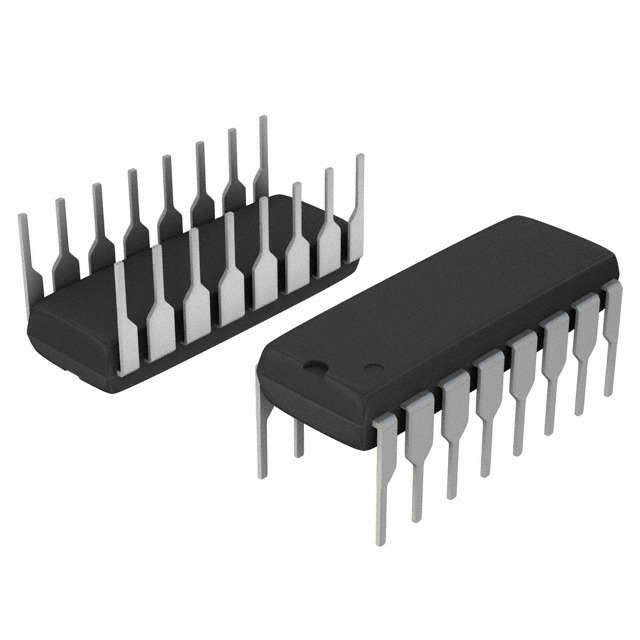

| Package / Case | 16-DIP (0.300″, 7.62mm) |
| Supplier Device Package | 16-DIP |
| Size / Dimension | 0.850″ L x 0.250″ W (21.59mm x 6.35mm) |
| Height – Seated (Max) | 0.155″ (3.94mm) |
