Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

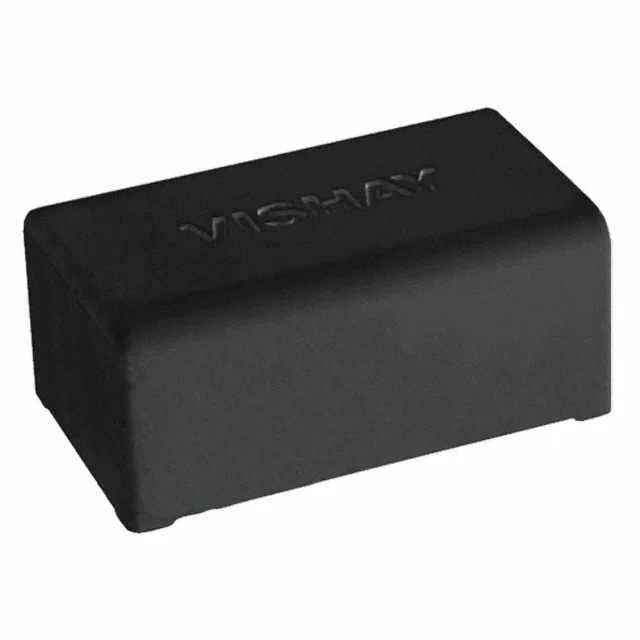

| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Series | MKP1848S DC-Link |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 20 µF |
| Tolerance | ±5% |
| Voltage Rating – AC | – |
| Voltage Rating – DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 9.5 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial – 4 Leads |
| Size / Dimension | 2.264″ L x 1.535″ W (57.50mm x 39.00mm) |
| Height – Seated (Max) | 0.945″ (24.00mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067″ (52.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | – |
| Features | Low ESR; Low ESL; Long Life |
