Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

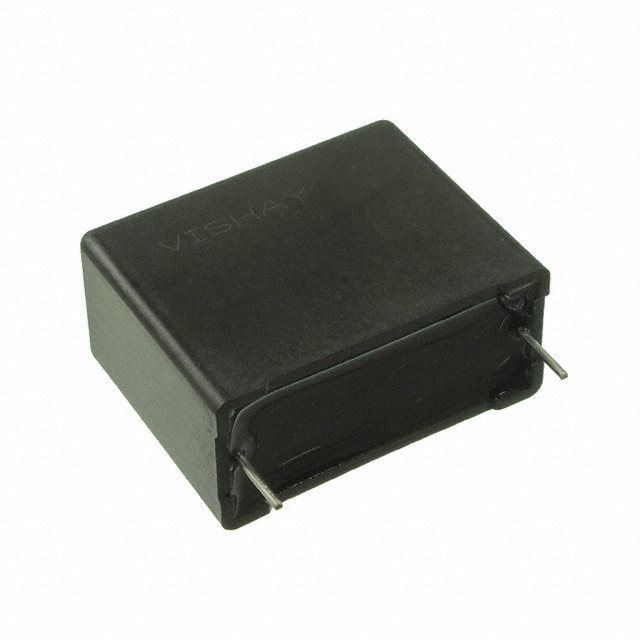

| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Series | MKP1847C |
| Packaging | Tray |
| Part Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±10% |
| Voltage Rating – AC | 275V |
| Voltage Rating – DC | 600V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.693″ L x 0.846″ W (43.00mm x 21.50mm) |
| Height – Seated (Max) | 1.555″ (39.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476″ (37.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | – |
| Features | – |
