Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

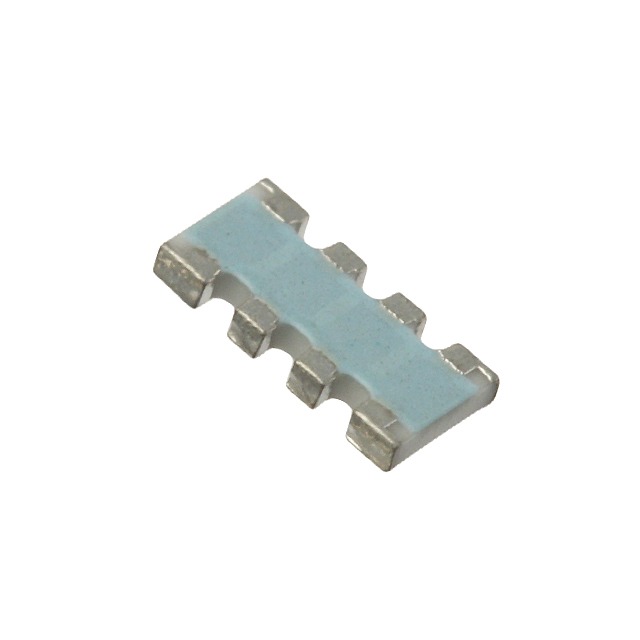

| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | ACA – Precision |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 10k |
| Tolerance | ±0.1% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | ±15ppm/°C |
| Number of Pins | 8 |
| Power Per Element | 100mW |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Convex, Long Side Terminals |
| Supplier Device Package | – |
| Size / Dimension | 0.126″ L x 0.059″ W (3.20mm x 1.50mm) |
| Height – Seated (Max) | 0.022″ (0.55mm) |
