Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | UMW |
| Series | 74LVC |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT – NO/NC |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 7Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 150mOhm (Typ) |
| Voltage – Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 5.2ns, 3.5ns |
| -3db Bandwidth | 350MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 5.2pF |
| Current – Leakage (IS(off)) (Max) | 100nA (Max) |
| Crosstalk | – |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

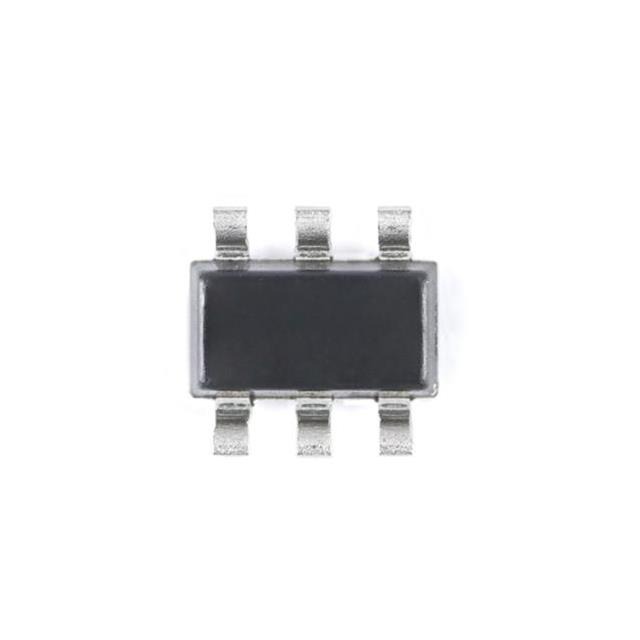

| Package / Case | 6-VSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC70-6 |
| Base Product Number | 74LVC1G3157 |
