Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | TXC CORPORATION |
| Series | 7Z |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | VCTCXO |
| Frequency | 26 MHz |
| Function | – |
| Output | Clipped Sine Wave |
| Voltage – Supply | 1.8V |
| Frequency Stability | ±2ppm |
| Absolute Pull Range (APR) | – |
| Operating Temperature | -30°C ~ 85°C |
| Current – Supply (Max) | 2mA |
| Ratings | – |
| Mounting Type | Surface Mount |

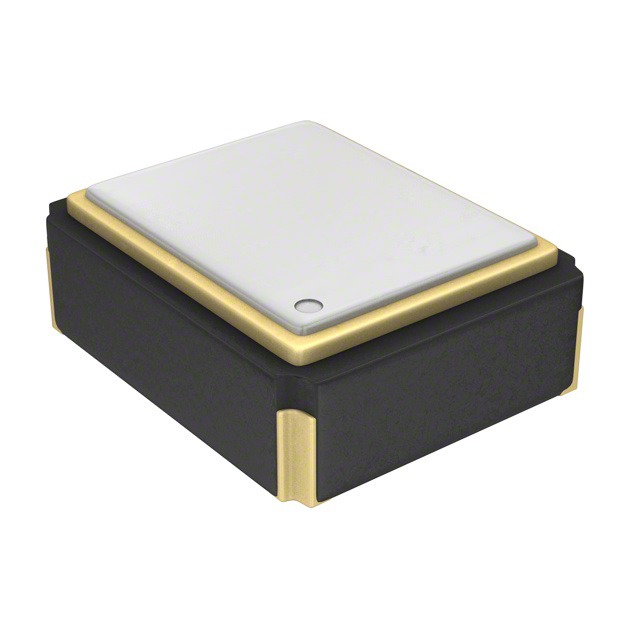

| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079″ L x 0.063″ W (2.00mm x 1.60mm) |
| Height – Seated (Max) | 0.031″ (0.80mm) |
| Current – Supply (Disable) (Max) | – |
