Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | TXC CORPORATION |
| Series | 7N |
| Packaging | Tape & Reel (TR) |
| Part Status | Discontinued at Digi-Key |
| Base Resonator | Crystal |

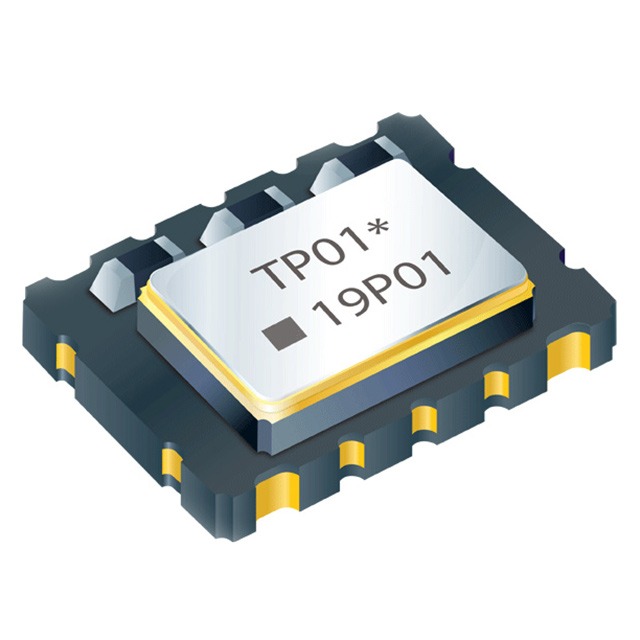

| Type | TCXO |
| Frequency | 10 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage – Supply | 2.7V ~ 5.5V |
| Frequency Stability | ±280ppb |
| Absolute Pull Range (APR) | – |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 10mA |
| Ratings | – |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.276″ L x 0.197″ W (7.00mm x 5.00mm) |
| Height – Seated (Max) | 0.079″ (2.00mm) |
| Current – Supply (Disable) (Max) | – |
