Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Applications | DisplayPort, PCIe, Thunderbolt, USB |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Switch Circuit | SPDT |
| Number of Channels | 2 |
| On-State Resistance (Max) | 15Ohm |
| Voltage – Supply, Single (V+) | 1.6V ~ 3.6V |
| Voltage – Supply, Dual (V±) | – |
| -3db Bandwidth | 26.2GHz |
| Features | Break-Before-Make, USB 3.2 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | – |
| Qualification | – |
| Mounting Type | Surface Mount |

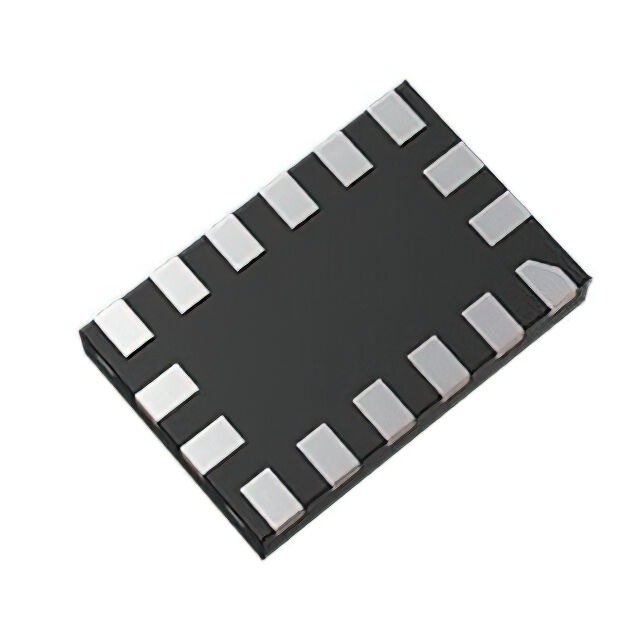

| Package / Case | 16-XFQFN |
| Supplier Device Package | 16-XQFN (2.4×1.6) |
