Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 740mOhm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Voltage – Supply, Single (V+) | 2.3V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 80ns, 70ns |
| -3db Bandwidth | 18.3MHz |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 70pF |
| Current – Leakage (IS(off)) (Max) | 50nA |
| Crosstalk | -78dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

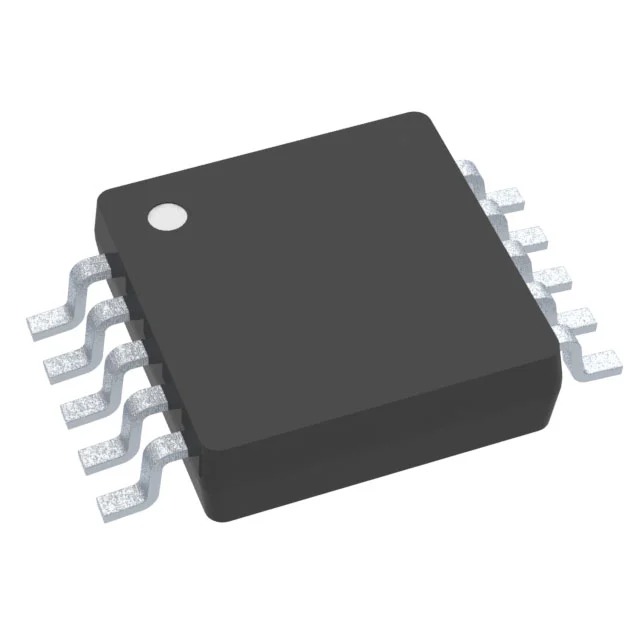

| Package / Case | 10-TFSOP, 10-MSOP (0.118″, 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Base Product Number | TS5A22364 |
