Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPST – NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 20Ohm |
| Channel-to-Channel Matching (ΔRon) | – |
| Voltage – Supply, Single (V+) | – |
| Voltage – Supply, Dual (V±) | ±1V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 75ns, 45ns |
| -3db Bandwidth | 464MHz |
| Charge Injection | -13pC |
| Channel Capacitance (CS(off), CD(off)) | 5.5pF, 5.5pF |
| Current – Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | – |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

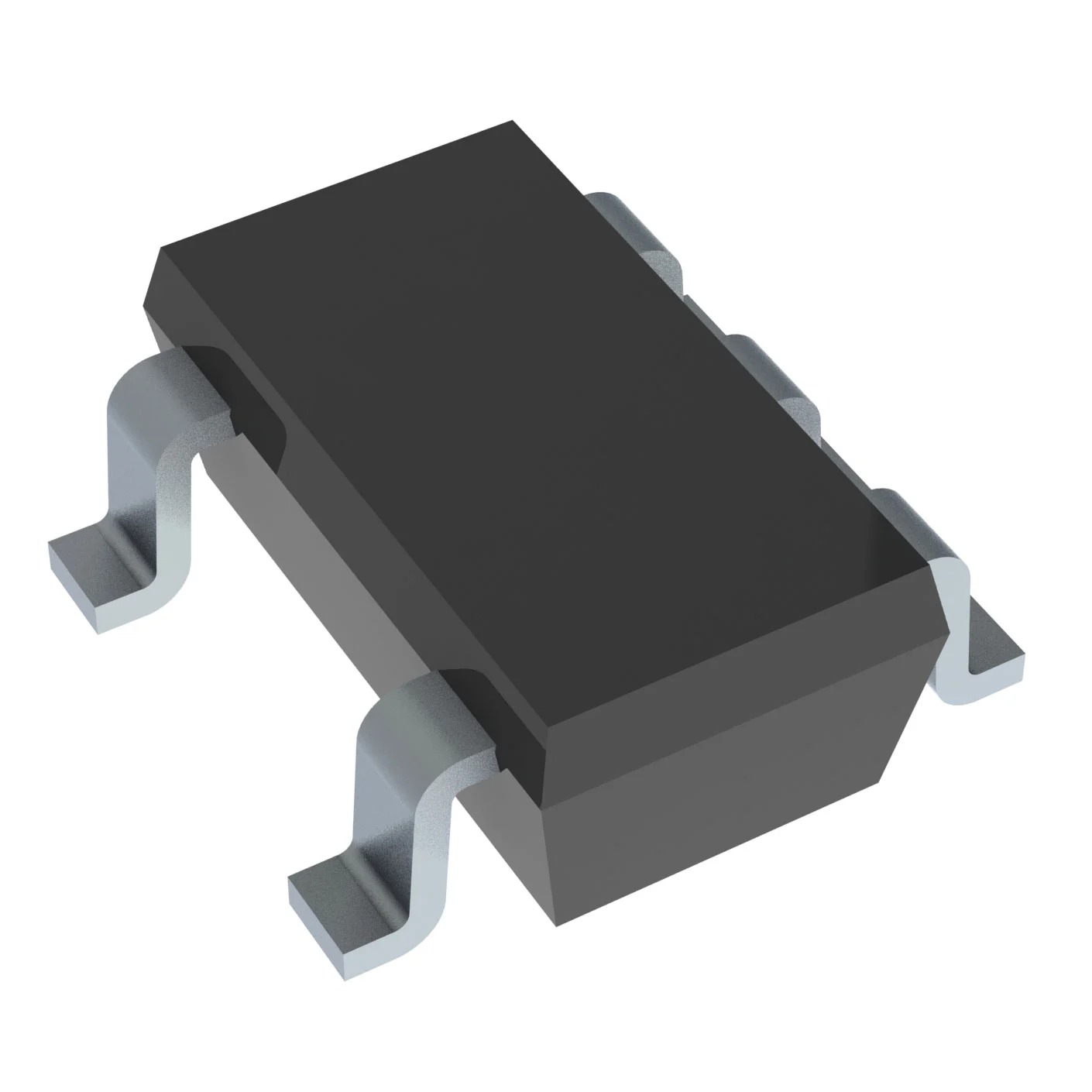

| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TS12A4516 |
Değerlendirmeler
Henüz değerlendirme yapılmadı.
