Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 165Ohm |
| Channel-to-Channel Matching (ΔRon) | 2.4Ohm |
| Voltage – Supply, Dual (V±) | ±5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 86ns, 64ns |
| -3db Bandwidth | 700MHz |
| Charge Injection | -0.19pC |
| Channel Capacitance (CS(off), CD(off)) | 1.9pF, 4.3pF |
| Current – Leakage (IS(off)) (Max) | 20pA |
| Crosstalk | -93dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

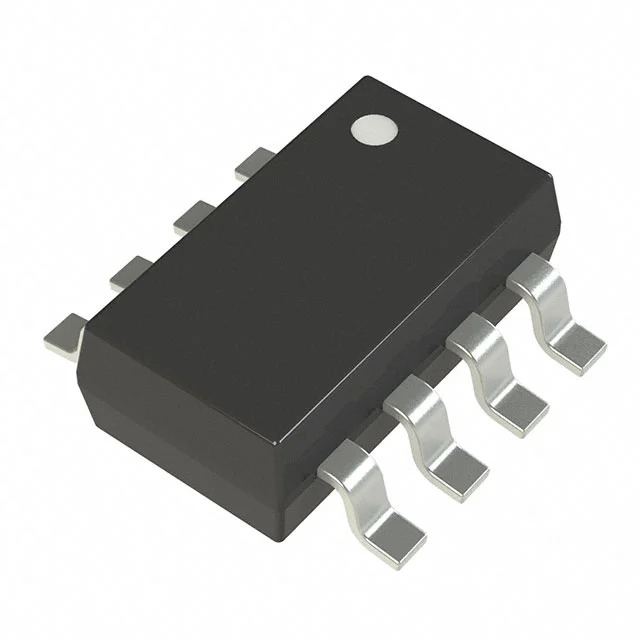

| Package / Case | SOT-23-8 |
| Supplier Device Package | SOT-23-8 |
| Base Product Number | TMUX6119 |
