Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 70mOhm |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 60µs, 4µs |
| -3db Bandwidth | 3GHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 2.5pF, 2.5pF |
| Current – Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |

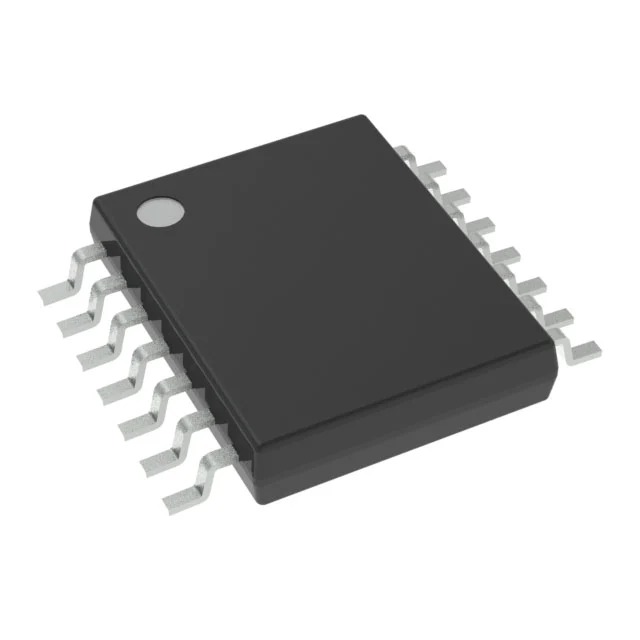

| Base Product Number | TMUX1511 |
