Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 195Ohm |
| Channel-to-Channel Matching (ΔRon) | 7Ohm |
| Voltage – Supply, Single (V+) | 1.62V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 32ns, 40ns |
| -3db Bandwidth | 500MHz |
| Charge Injection | -6.5pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 7pF |
| Current – Leakage (IS(off)) (Max) | 1nA (Typ) |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

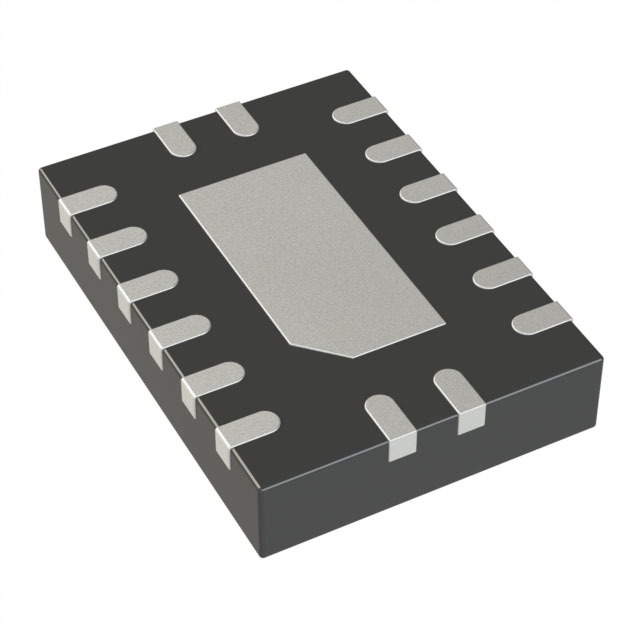

| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3.5×2.5) |
| Base Product Number | TMUX1309 |
