Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 18Ohm |
| Channel-to-Channel Matching (ΔRon) | 70mOhm |
| Voltage – Supply, Single (V+) | 2.3V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 250µs, 10µs |
| -3db Bandwidth | 1.2GHz |
| Charge Injection | – |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 4pF |
| Current – Leakage (IS(off)) (Max) | 185µA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118″, 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |

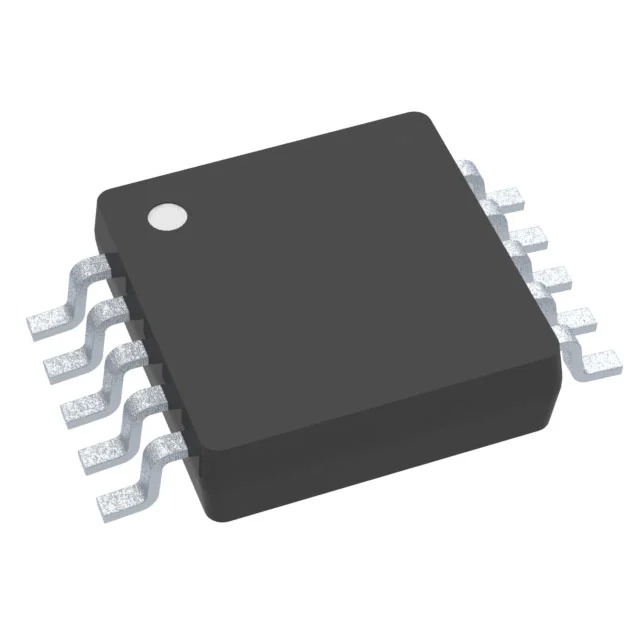

| Base Product Number | TMUX1072 |
