Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | Push-Pull, Rail-to-Rail |
| Voltage – Supply, Single/Dual (±) | 1.6V ~ 6.5V |
| Voltage – Input Offset (Max) | 8mV @ 5V |
| Current – Input Bias (Max) | 2pA @ 5V |
| Current – Output (Typ) | 35mA @ 5V |
| Current – Quiescent (Max) | 900nA |
| CMRR, PSRR (Typ) | 73dB CMRR, 77dB PSRR |
| Propagation Delay (Max) | 3µs |
| Hysteresis | 17mV |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |

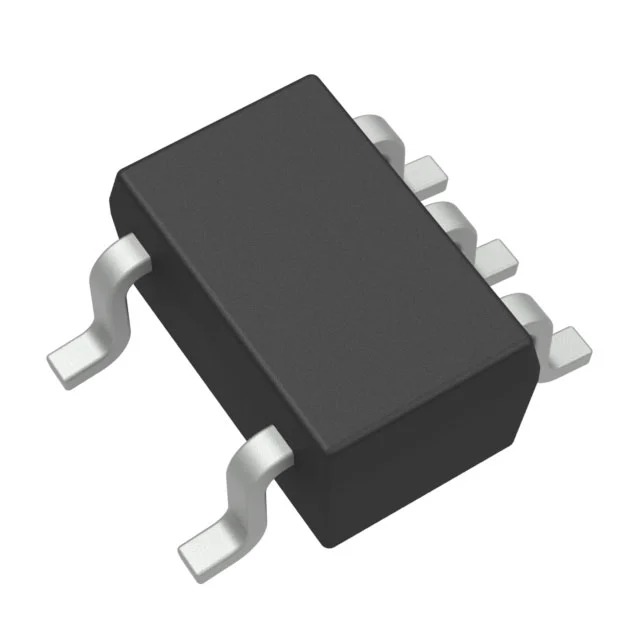

| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface Mount |
