Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | LVDS |
| Voltage – Supply, Single/Dual (±) | 2.4V ~ 5.5V |
| Voltage – Input Offset (Max) | 5mV @ 5V |
| Current – Input Bias (Max) | 5µA @ 5V |
| Current – Output (Typ) | – |
| Current – Quiescent (Max) | 16.5mA |
| CMRR, PSRR (Typ) | 80dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 0.8ns |
| Hysteresis | 60mV |
| Operating Temperature | -40°C ~ 125°C |

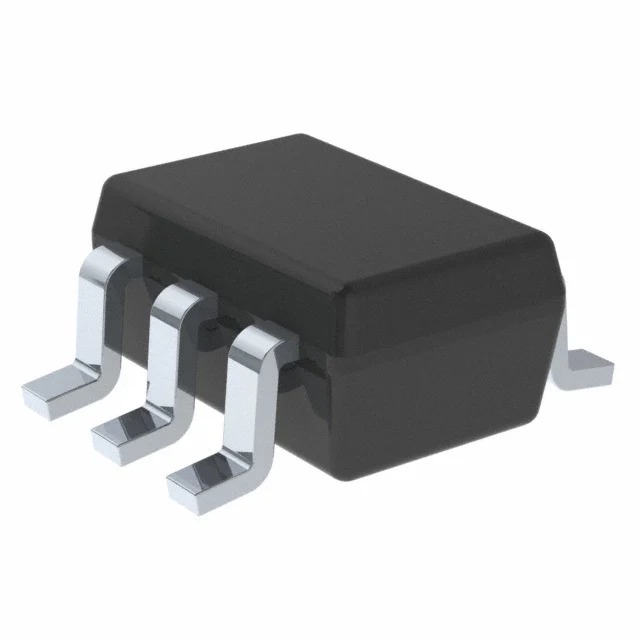

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-6 |
| Base Product Number | TLV3604 |
