Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | CMOS, Push-Pull, Rail-to-Rail |
| Voltage – Supply, Single/Dual (±) | 2.4V ~ 5.5V |
| Voltage – Input Offset (Max) | 5mV @ 5V |
| Current – Input Bias (Max) | 1µA @ 5V |
| Current – Output (Typ) | 30mA |
| Current – Quiescent (Max) | 7mA |
| CMRR, PSRR (Typ) | 80dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 3.5ns |
| Hysteresis | 60mV |
| Operating Temperature | -40°C ~ 125°C |

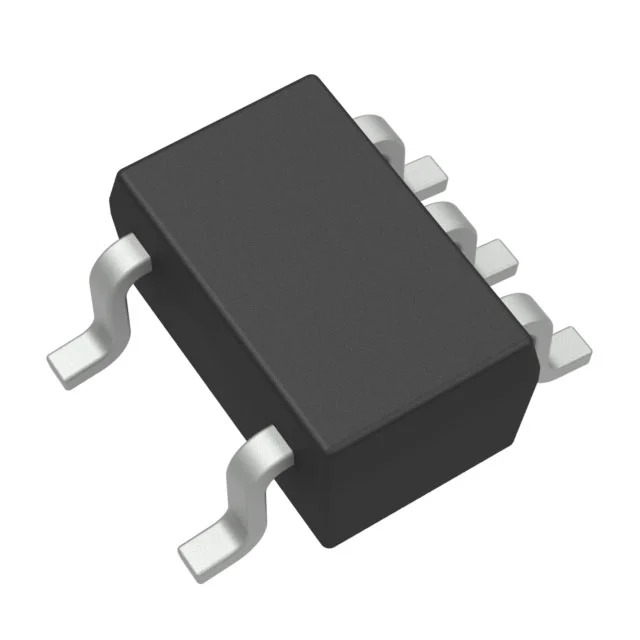

| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
