Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | CMOS, Push-Pull, Rail-to-Rail, TTL |
| Voltage – Supply, Single/Dual (±) | 2.7V ~ 5.5V, ±1.35V ~ 2.75V |
| Voltage – Input Offset (Max) | 6.5mV @ 5.5V |
| Current – Input Bias (Max) | 10pA @ 5.5V |
| Current – Output (Typ) | – |
| Current – Quiescent (Max) | 5mA |
| CMRR, PSRR (Typ) | 70dB CMRR, 100dB PSRR |
| Propagation Delay (Max) | 10ns |
| Hysteresis | 6mV |
| Operating Temperature | -40°C ~ 125°C |

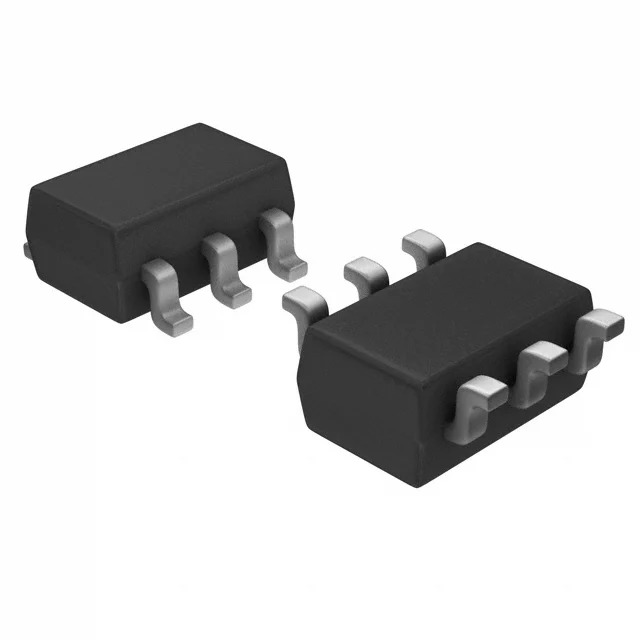

| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | TLV3501 |
