Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | 74LVC |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPST – NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 15Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm (Max) |
| Voltage – Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 5.9ns, 8.3ns |
| -3db Bandwidth | 300MHz |
| Charge Injection | – |
| Channel Capacitance (CS(off), CD(off)) | 6pF |
| Current – Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -58dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |

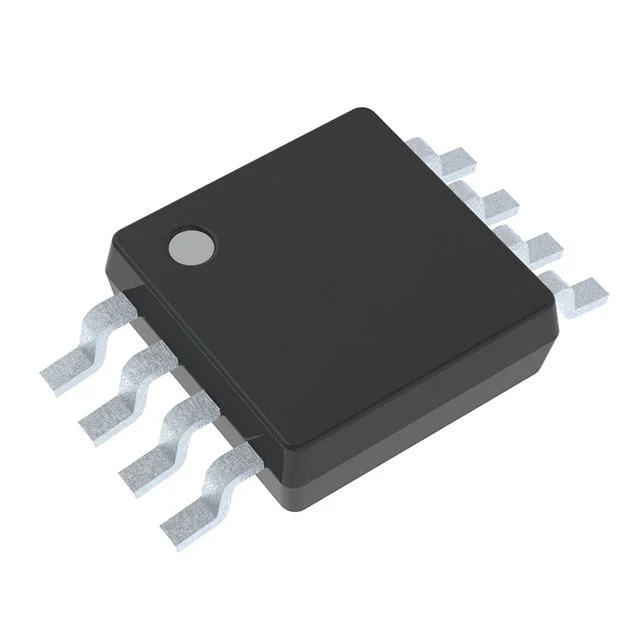

| Package / Case | 8-VFSOP (0.091″, 2.30mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | 74LVC2G66 |
