Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 700mOhm |
| Voltage – Supply, Single (V+) | 2V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 14ns, 14ns |
| -3db Bandwidth | 50MHz |
| Charge Injection | – |
| Channel Capacitance (CS(off), CD(off)) | 0.5pF, 13.1pF |
| Current – Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -45dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

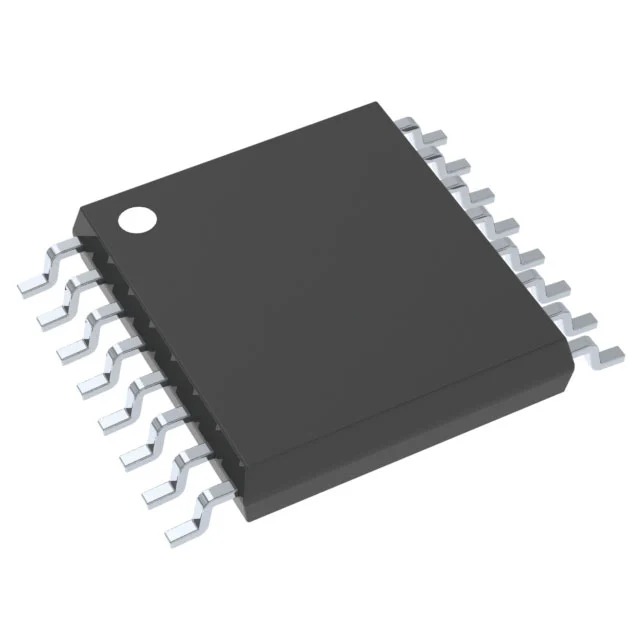

| Package / Case | 16-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | 74LV4052 |
