Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | – |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 170Ohm |
| Channel-to-Channel Matching (ΔRon) | 2.4Ohm |
| Voltage – Supply, Single (V+) | 10V ~ 36V |
| Voltage – Supply, Dual (V±) | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 136ns, 75ns |
| -3db Bandwidth | – |
| Charge Injection | 0.3pC |
| Channel Capacitance (CS(off), CD(off)) | 2.4pF, 7.5pF |
| Current – Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -96dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

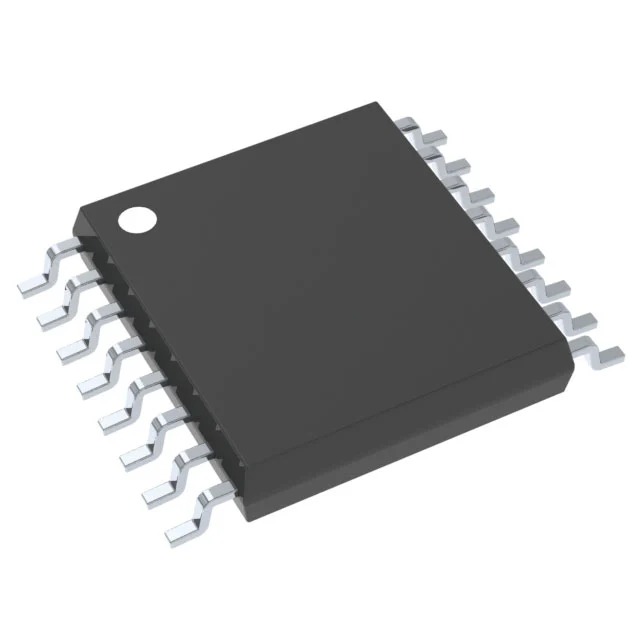

| Package / Case | 16-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | MUX508 |
