Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Texas Instruments |
| Series | LMK6x |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Obsolete |
| Base Resonator | Silicon |
| Type | XO (Standard) |
| Frequency | 100 MHz |
| Function | Standby (Power Down) |
| Output | HCSL |
| Voltage – Supply | 2.5V ~ 3.3V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | – |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 82mA |
| Ratings | – |
| Mounting Type | Surface Mount |

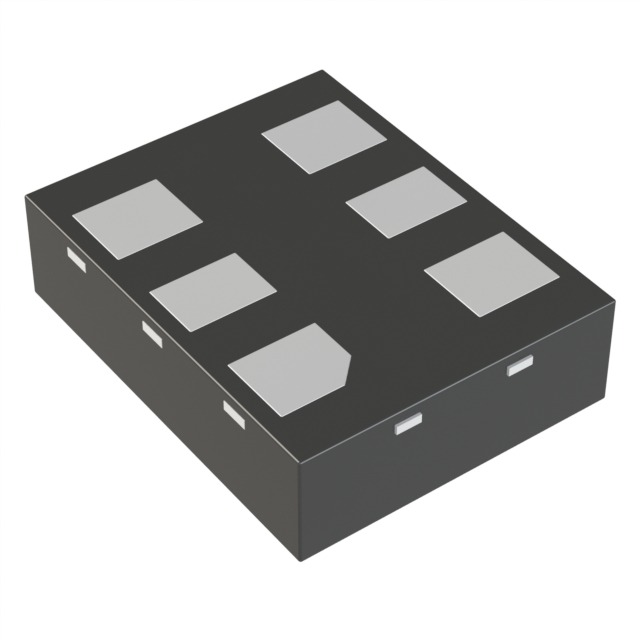

| Package / Case | 6-VDFN |
| Supplier Device Package | 6-VSON (3.2×2.5) |
| Size / Dimension | 0.126″ L x 0.098″ W (3.20mm x 2.50mm) |
| Height – Seated (Max) | 0.039″ (1.00mm) |
| Current – Supply (Disable) (Max) | 13mA |
