Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL |
| Voltage – Supply, Single/Dual (±) | 3.5V ~ 30V, ±1.75V ~ 15V |
| Voltage – Input Offset (Max) | 7.5mV @ ±15V |
| Current – Input Bias (Max) | 0.25µA @ ±15V |
| Current – Output (Typ) | 50mA |
| Current – Quiescent (Max) | 7.5mA |
| CMRR, PSRR (Typ) | – |
| Propagation Delay (Max) | – |
| Hysteresis | – |
| Operating Temperature | 0°C ~ 70°C |

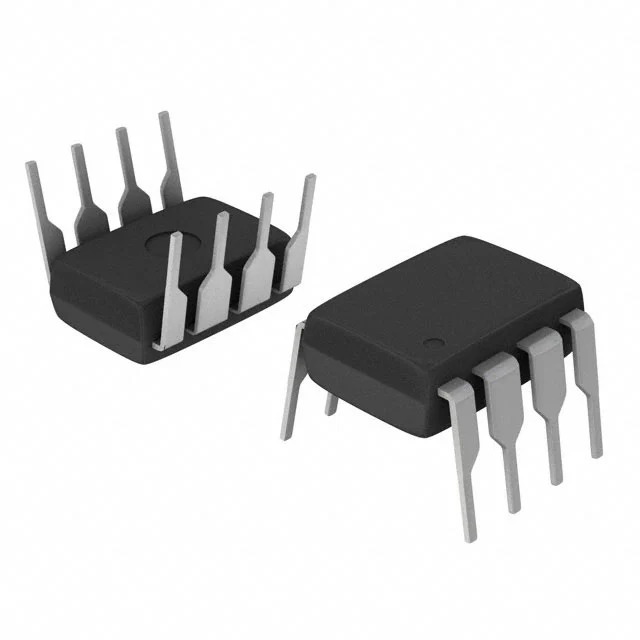

| Package / Case | 8-DIP (0.300″, 7.62mm) |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-PDIP |
| Base Product Number | LM311 |
