Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 2 |
| Output Type | Open-Collector, Open-Drain, Rail-to-Rail |
| Voltage – Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V |
| Voltage – Input Offset (Max) | 5mV @ 30V |
| Current – Input Bias (Max) | 0.25µA @ 5V |
| Current – Output (Typ) | 20mA |
| Current – Quiescent (Max) | 2.5mA |
| CMRR, PSRR (Typ) | – |
| Propagation Delay (Max) | – |
| Hysteresis | – |
| Operating Temperature | -25°C ~ 85°C |

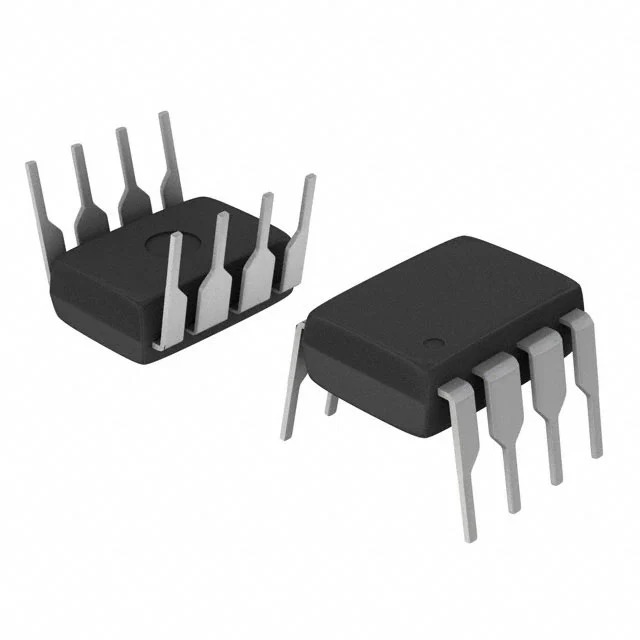

| Package / Case | 8-DIP (0.300″, 7.62mm) |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-PDIP |
| Base Product Number | LM293 |
