Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | DAC81401 |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 1.2ms |
| Output Type | Voltage – Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Voltage – Supply, Analog | 4.5V ~ 5.5V |
| Voltage – Supply, Digital | 4.5V ~ 5.5V |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 125°C |

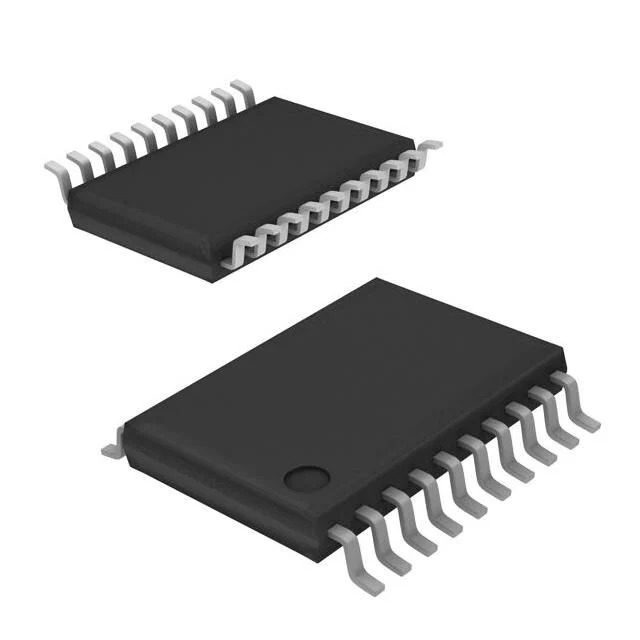

| Package / Case | 20-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Mounting Type | Surface Mount |
