Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 25µs (Typ) |
| Output Type | Voltage or Current – Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Voltage – Supply, Analog | 10V ~ 36V, -18V |
| Voltage – Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | -, ±1 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 125°C |

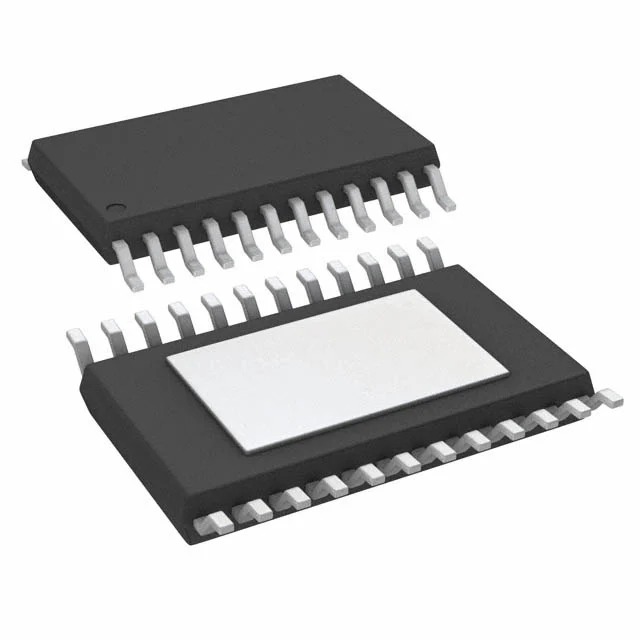

| Package / Case | 24-PowerTSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 24-HTSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | DAC7760 |
Değerlendirmeler
Henüz değerlendirme yapılmadı.
