Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | – |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 130Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm |
| Voltage – Supply, Single (V+) | 4.5V ~ 5.5V |
| Voltage – Supply, Dual (V±) | ±1V ~ 5V |
| Switch Time (Ton, Toff) (Max) | – |
| -3db Bandwidth | 180MHz |
| Charge Injection | – |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF |
| Current – Leakage (IS(off)) (Max) | 400nA |
| Crosstalk | – |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |

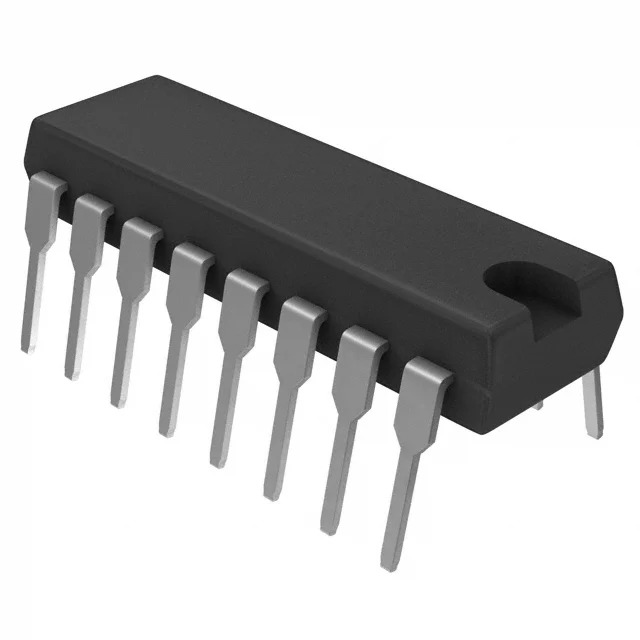

| Package / Case | 16-DIP (0.300″, 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | 74HCT4051 |
