Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

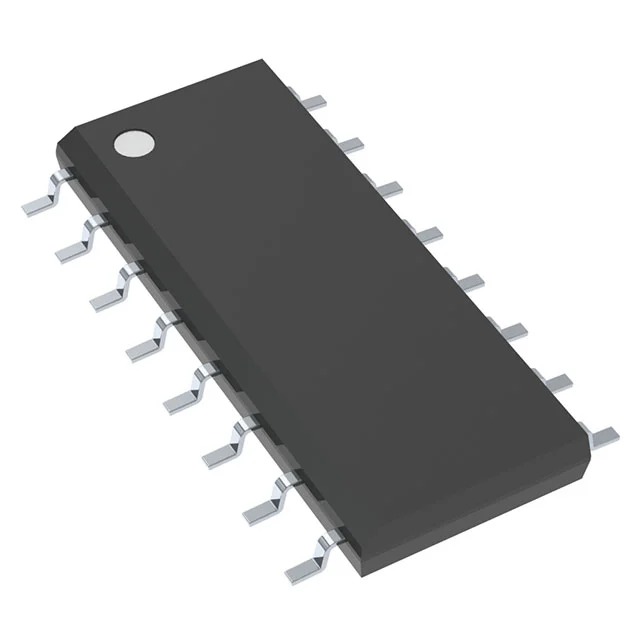

| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 240Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm |
| Voltage – Supply, Single (V+) | 3V ~ 20V |
| Voltage – Supply, Dual (V±) | ±2.5V ~ 9V |
| Switch Time (Ton, Toff) (Max) | – |
| -3db Bandwidth | 30MHz |
| Charge Injection | – |
| Channel Capacitance (CS(off), CD(off)) | 0.2pF, 9pF |
| Current – Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -40dB @ 6MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | CD4053 |
