Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

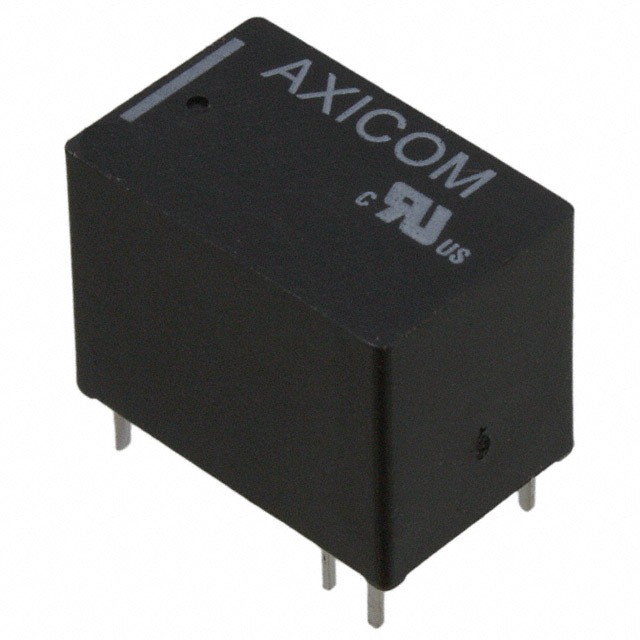

| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23101, AXICOM |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 1.25 A |
| Switching Voltage | 125VAC, 120VDC – Max |
| Load – Max Switching | 62.5VA, 30W |
| Coil Current | 41.6 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 3.8 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 120 Ohms |
| Base Product Number | V23101 |
