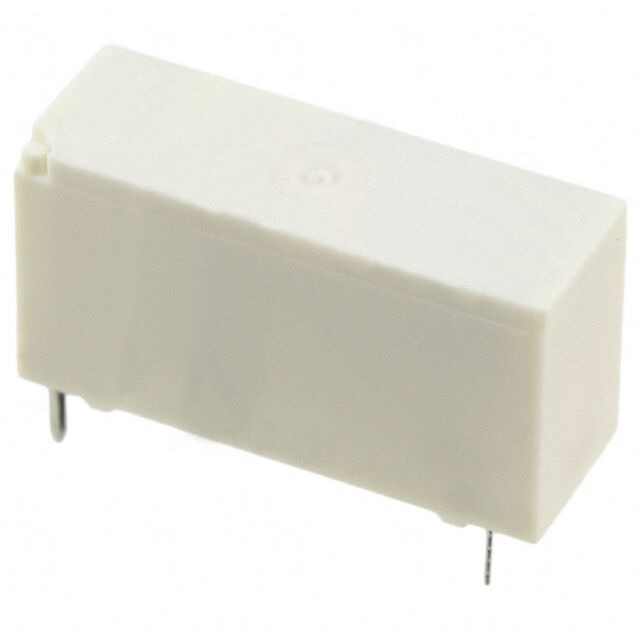

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | MSR, SCHRACK |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 400VAC – Max |
| Load – Max Switching | 3200VA |
| Coil Current | 10.6 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class A |
| Must Operate Voltage | 16.3 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 2.27 kOhms |
| Base Product Number | 1393222 |
