Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

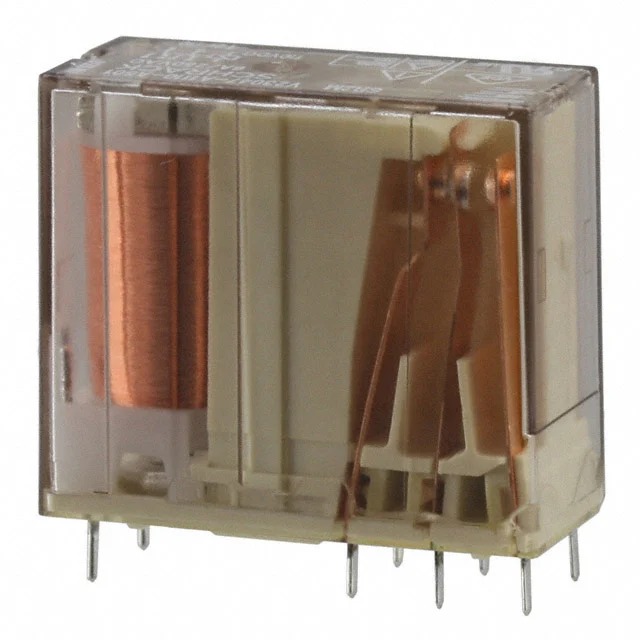

| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | SR2M, SCHRACK |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | DPST-NO/NC (1 Form A, 1 Form B) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 400VAC – Max |
| Features | Sealed – Fully |
| Termination Style | PC Pin |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Coil Current | 29.2 mA |
| Coil Power | 700mW |
| Coil Resistance | 823 Ohms |
| Base Product Number | V23047 |
