Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

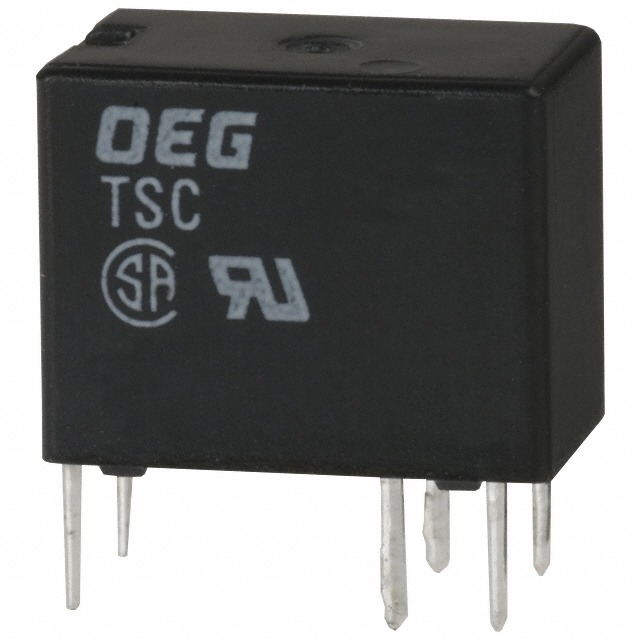

| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | TSC, OEG |
| Packaging | Tube |
| Part Status | Last Time Buy |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 120VAC, 30VDC – Max |
| Load – Max Switching | 120VA, 30W |
| Coil Current | 25 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | – |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Operating Temperature | -30°C ~ 80°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CSA, UR |
| Relay Type | Telecom |
| Grade | – |
| Qualification | – |
| Coil Resistance | 480 Ohms |
| Base Product Number | TSC-112 |
