Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

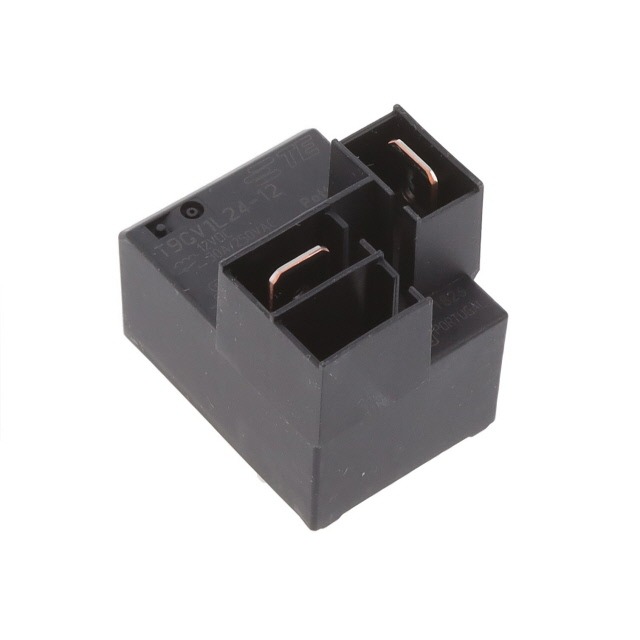

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | T9G |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 480VAC – Max |
| Load – Max Switching | 14400VA |
| Coil Current | 75 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin, Quick Connect – 0.250″ (6.3mm) |
| Seal Rating | Sealed – Flux Protection |
| Coil Insulation | Class B |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 22 ms |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CQC, cURus, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Coil Resistance | 160 Ohms |
| Base Product Number | T9GV1 |
