Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

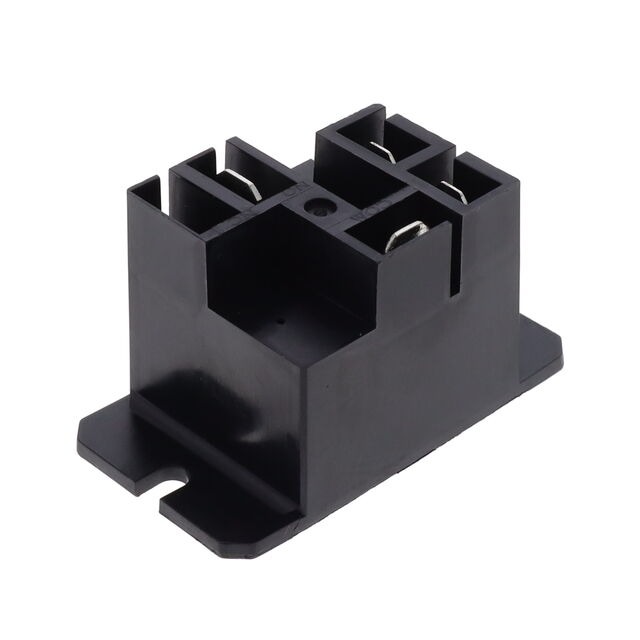

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | T9C, OEG |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 110VAC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 277VAC – Max |
| Load – Max Switching | 8310VA |
| Coil Current | 13.3 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Quick Connect – 0.187″/0.250″ |
| Seal Rating | – |
| Coil Insulation | Class F |
| Must Operate Voltage | 88 VAC |
| Must Release Voltage | 33 VAC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, UR, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 3.03 kOhms |
| Base Product Number | T9CP1 |
