Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

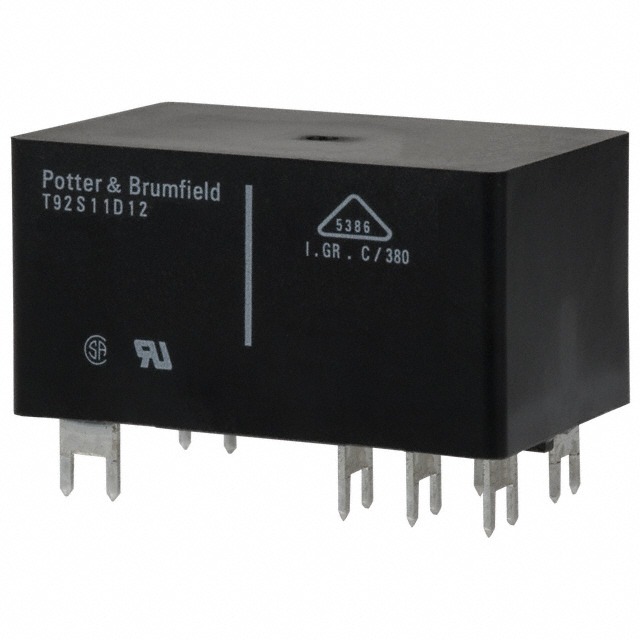

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | T92 |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 600VAC – Max |
| Load – Max Switching | 18000VA |
| Coil Current | 140 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, TUV, UL, UR, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 86 Ohms |
| Base Product Number | T92S1 |
