Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

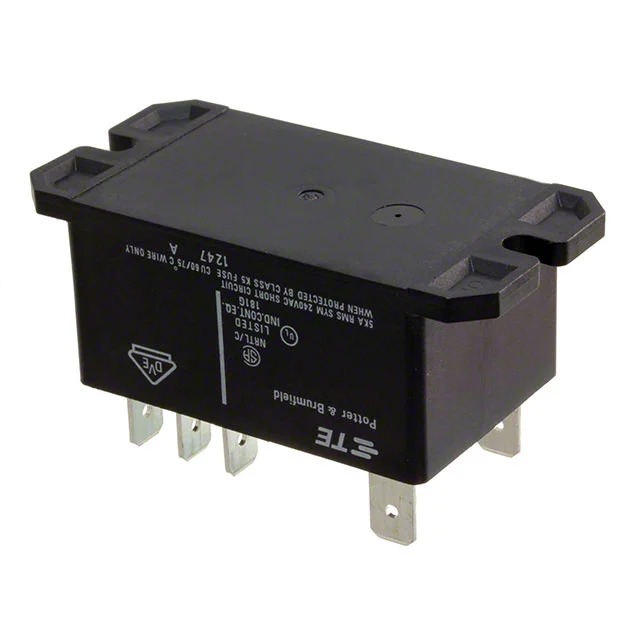

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | T92 |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 110VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 600VAC – Max |
| Load – Max Switching | 18000VA |
| Coil Current | 15.5 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Quick Connect – 0.250″ (6.3mm) |
| Seal Rating | – |
| Coil Insulation | Class F |
| Must Operate Voltage | 82.5 VDC |
| Must Release Voltage | 11 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, TUV, UL, UR, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 7.25 kOhms |
| Base Product Number | T92P1 |
