Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

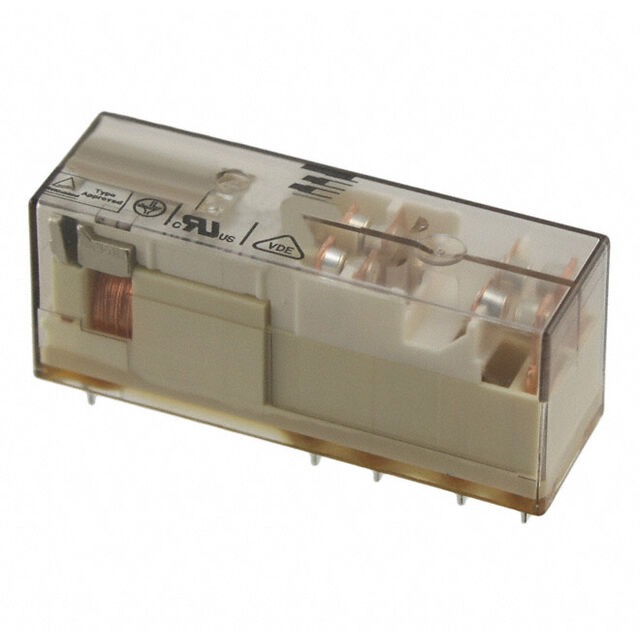

| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | SR4, SCHRACK |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | 4PST-3NO/1NC (3 Form A, 1 Form B) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 400VAC – Max |
| Features | – |
| Termination Style | PC Pin |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Coil Current | 66.7 mA |
| Coil Power | 800mW |
| Coil Resistance | 180 Ohms |
| Base Product Number | SR4M |
