Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

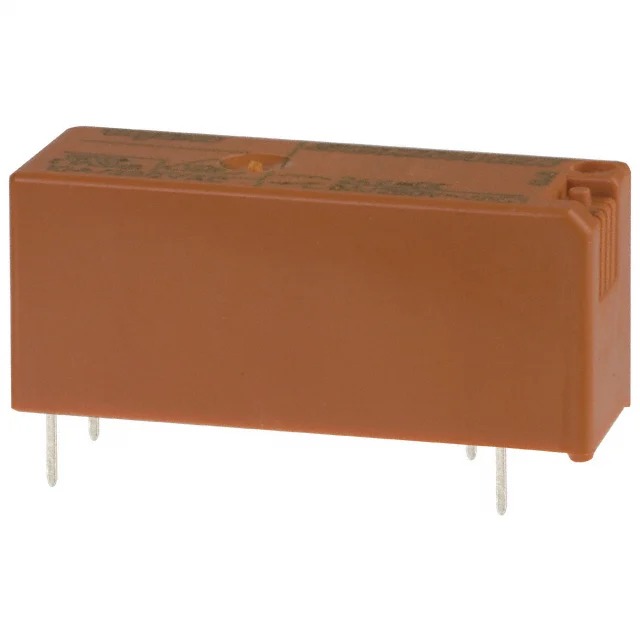

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | RY, SCHRACK |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 400VAC – Max |
| Load – Max Switching | 3200VA |
| Coil Current | 10.2 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Flux Protection |
| Coil Insulation | – |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 9 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 2.35 kOhms |
| Base Product Number | RY2110 |
