Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | RT1, SCHRACK |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC – Max |
| Load – Max Switching | 6400VA |
| Coil Current | 14.2 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 8 ms |
| Release Time | 6 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CQC, CSA, cURus, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 360 Ohms |

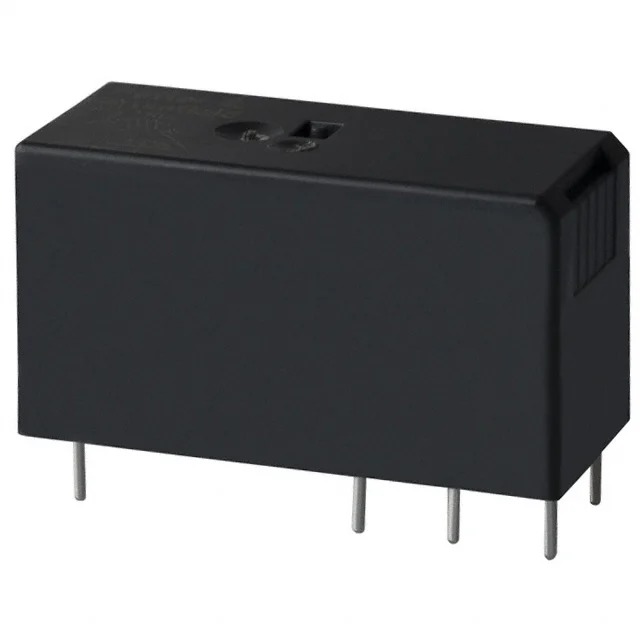

| Base Product Number | RTD140 |
