Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

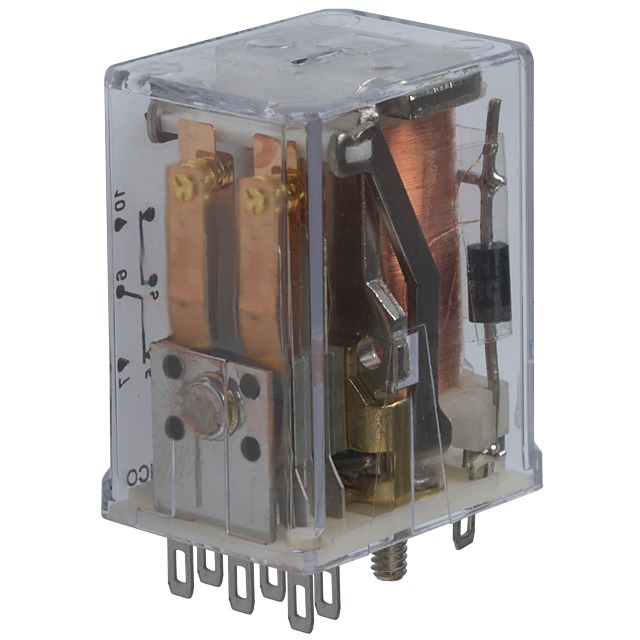

| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | R10 |
| Packaging | Bulk |
| Part Status | Obsolete |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 120VAC, 30VDC – Max |
| Load – Max Switching | 240VA, 60W |
| Coil Current | 64.9 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Plug In |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | – |
| Operating Temperature | -55°C ~ 75°C |
| Contact Material | Silver (Ag) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 185 Ohms |
| Base Product Number | R10-E1Z4 |
