Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

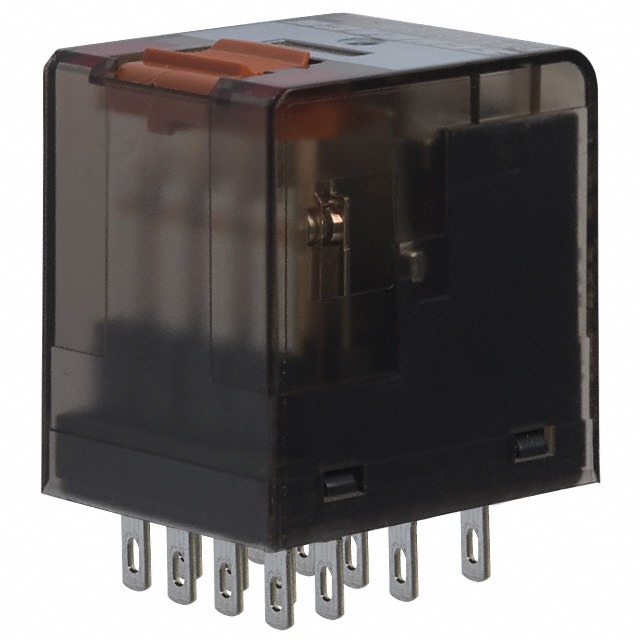

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | PT, SCHRACK |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 240VAC – Max |
| Load – Max Switching | 1440VA |
| Coil Current | 30.8 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Mechanical Indicator, Test Button |
| Termination Style | Plug In, Quick Connect – 0.110″ (2.8mm) |
| Seal Rating | – |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 777 Ohms |
| Base Product Number | PT570 |
