Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

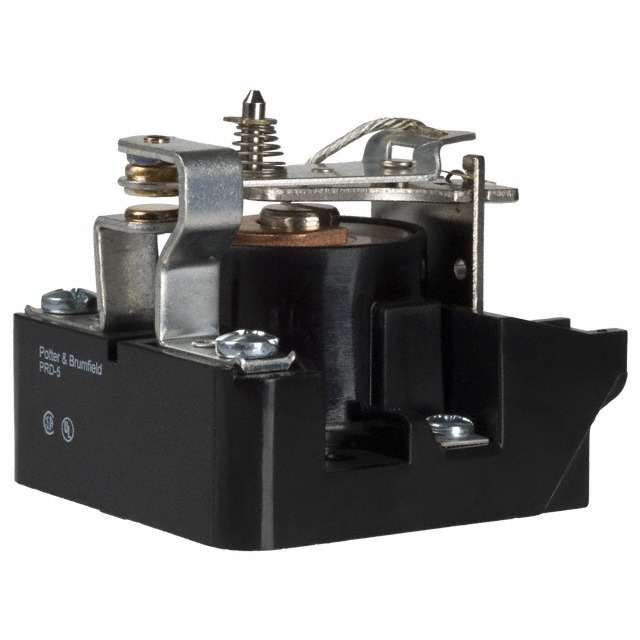

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | PRD |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 600VAC, 125VDC – Nom |
| Load – Max Switching | – |
| Coil Current | 169 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Screw Terminal |
| Seal Rating | – |
| Coil Insulation | Class B |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 40 ms |
| Release Time | 20 ms |
| Operating Temperature | -55°C ~ 80°C |
| Contact Material | Silver (Ag) |
| Approval Agency | CSA, UL |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 71 Ohms |
| Base Product Number | PRD-5DY0 |
