Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

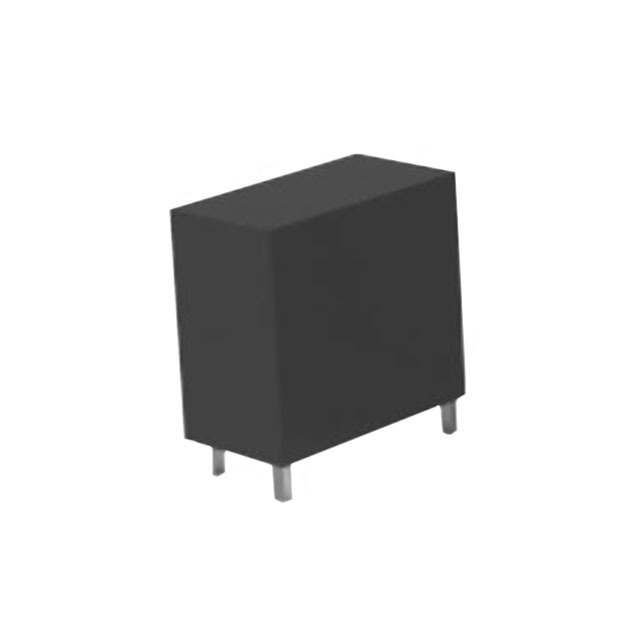

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | PCF, OEG |
| Packaging | Tube |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 277VAC, 24VDC – Max |
| Load – Max Switching | 6925VA, 600W |
| Coil Current | 75 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Operating Temperature | -30°C ~ 55°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CSA, cURus, TUV |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 160 Ohms |
| Base Product Number | PCFN-112 |
