Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

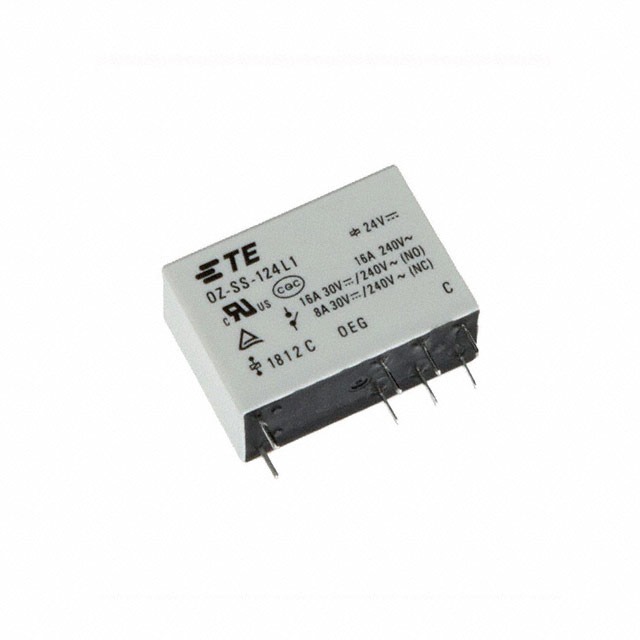

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | OZ, OEG |
| Packaging | Bulk |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 240VAC, 24VDC – Max |
| Load – Max Switching | 3840VA, 380W |
| Coil Current | 21.8 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Flux Protection |
| Coil Insulation | Class A |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Release Time | 8 ms |
| Operating Temperature | -30°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CQC, CSA, TUV, UR |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 1.1 kOhms |
| Base Product Number | OZ-SS |
