Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

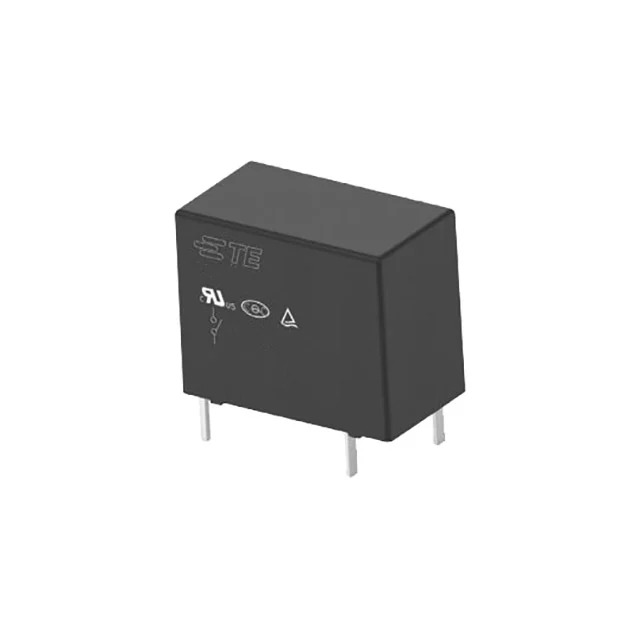

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | OJS, OEG |
| Packaging | Tray |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC – Max |
| Load – Max Switching | 2500VA |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 15 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Approval Agency | CQC, cURus, TUV |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 720 Ohms |
| Base Product Number | OJS-SH |
